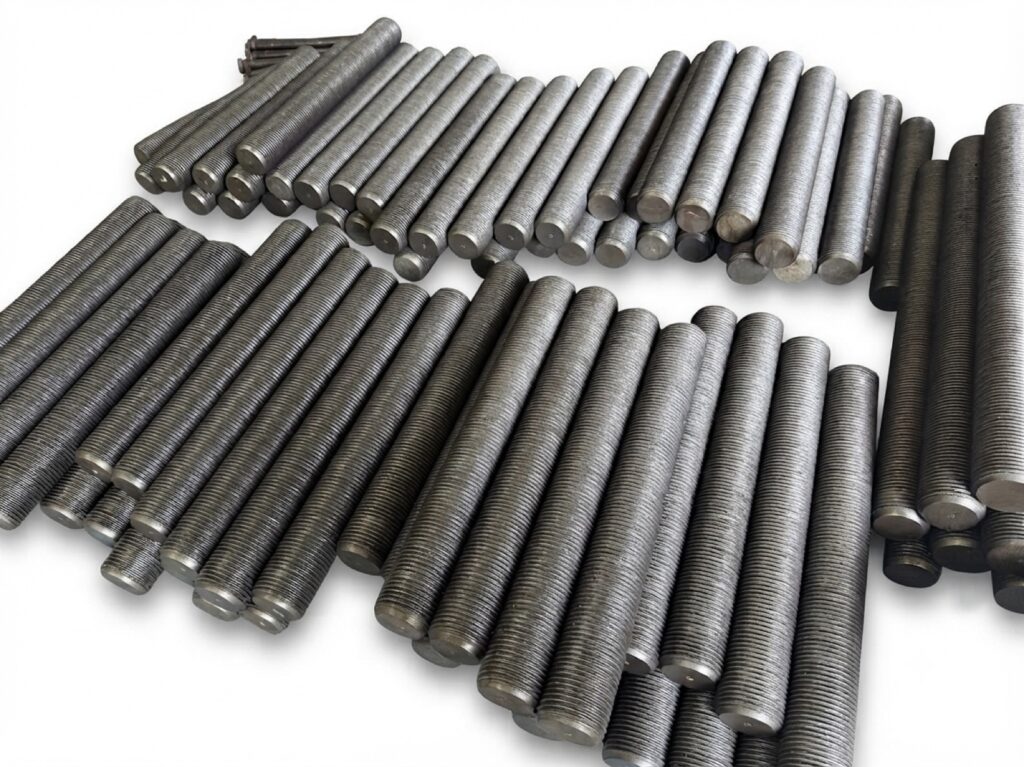

L7 Stud Supplier in Chennai
L7 stud bolts to ASTM A320 are specified for low-temperature and cryogenic service — applications where standard B7 studs risk brittle failure at sub-zero temperatures. L7 is impact-tested at low temperature to confirm toughness under cold conditions.
Specifications
| Standard | ASTM A320 Grade L7 |
|---|---|
| Material | Alloy Steel, Quenched & Tempered |
| Size Range | M10 – M48 |
| Matching Nut | ASTM A194 Grade 7 or 2H |
| Service | Low-temperature / cryogenic piping |
Applications
- Cryogenic and LNG piping
- Low-temperature process equipment
- Sub-zero service flange connections
Why Source From Us?
For L7 stud requirements, send the applicable standard, dimensions, service temperature and required testing or documentation; availability is confirmed against the quoted item. Get a quote.
Selecting ASTM A320 Grade L7 Stud Bolts
ASTM A320 Grade L7 is a quenched-and-tempered alloy-steel stud-bolting grade used where low-temperature toughness is required. When specifying L7 studs for pipeline flanges, pressure equipment or LNG-related service, confirm the governing piping/equipment code and the minimum design metal temperature. Required impact-test temperatures, mechanical testing, heat treatment and documentation must be checked against the applicable material standard, purchase specification and supplied heat or batch.
L7 Stud Sizes, Nuts and Finishes: Buying Checklist
- ASTM A320 Grade L7 designation, diameter, thread series/pitch and overall stud length
- Quantity and whether nuts and washers are required per stud
- Matching nut grade (such as ASTM A194 Grade 7 or 2H) as approved by the project specification; do not assume grades are interchangeable for every duty
- Required coating or surface finish, service temperature and corrosion conditions
- Material test certificates, impact-test evidence, traceability and inspection requirements, where specified
For comparison with other industrial bolting requirements, browse ASTM A193 B7 Studs, ASTM Studs and Threaded Rods. Send your L7 stud requirement for a Chennai supplier quotation; dimensions, finish and certification are confirmed for the quoted material.
Browse the full fasteners category for additional stud bolts and industrial fixings.
