Blind Flange Supplier in Chennai

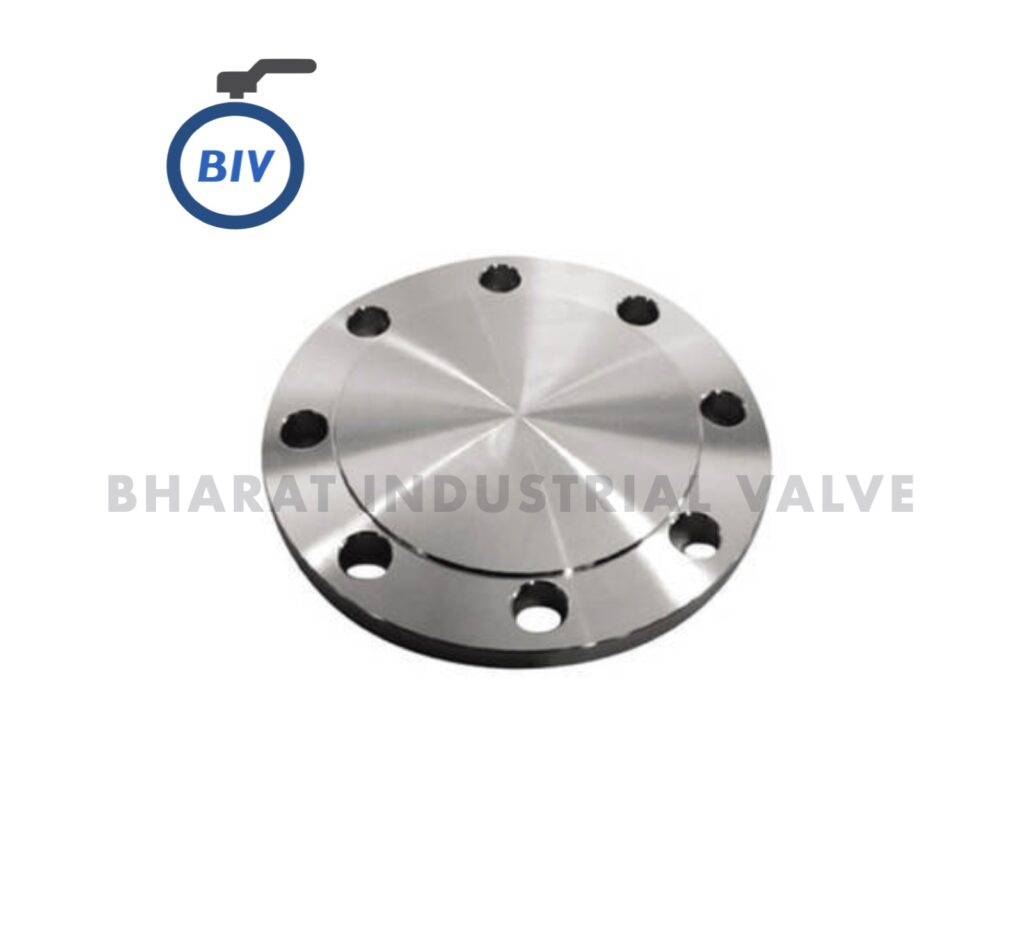

Blind flanges are solid discs bolted to the end of a pipe, valve, or vessel opening to completely seal it off — used to close off unused branches, for pressure testing, or where a line may need to be reopened for future connection.
Specifications
| Material | CS / SS 304 / SS 316 |
|---|---|
| Standard | ASME B16.5 / DIN 2527 |
| Pressure Rating | Class 150 / 300 / PN16 / PN25 |
| Size Range | 15mm – 600mm |
Applications
- Sealing off unused pipeline branches
- Pressure testing dead-ends
- Vessel and equipment nozzle closures
Why Source From Us?
Bharat Industrial Valve supplies blind flanges in Chennai for industrial piping requirements. Confirm the material, standard, pressure class, size and required documentation against the quotation before ordering.
Project Enquiry & Related Flanges
For a blind flange quotation, send the material, standard, pressure class, size, quantity and delivery location. Compare other flange options in our Slip On Flange, Weld Neck Flange and Spectacle Flange pages. Request a project quote.
Blind Flange Facing, Pressure Class and Gasket Selection
A blind flange has no through-bore and closes a pipe-end, valve or vessel opening by bolting against a compatible mating flange. Specify the relevant standard and nominal size, then match the pressure class or PN rating, bolt-hole pattern, flange facing and material to the existing joint. ASME class and DIN/EN PN ratings are not directly interchangeable. Pressure-temperature suitability depends on the design standard, material group and actual service conditions.
Check the required raised-face (RF), flat-face (FF) or ring-type-joint (RTJ) facing where applicable. The mating face, gasket type, bolt grade and tightening procedure are part of joint selection; the flange alone does not guarantee a leak-tight pressure-test closure. Confirm any test conditions and safety requirements with the responsible engineer.
Blind Flange Quotation Checklist
- Flange dimensional standard, size (DN/NPS), pressure class or PN designation
- Material specification (for example carbon steel or the specified stainless-steel grade)
- Facing type and relevant matching-flange or bolt-pattern details
- Operating pressure and temperature, media and any corrosion requirements
- Quantity, delivery location, drawing and required inspection or material documents
For a welded pipe connection rather than a blank closure, compare Weld Neck Flanges and Slip On Flanges. Send your blind flange specification for a Chennai supplier quotation; ratings, materials and available documentation are confirmed against the exact quotation.
