Weld Neck Flange Supplier in Chennai

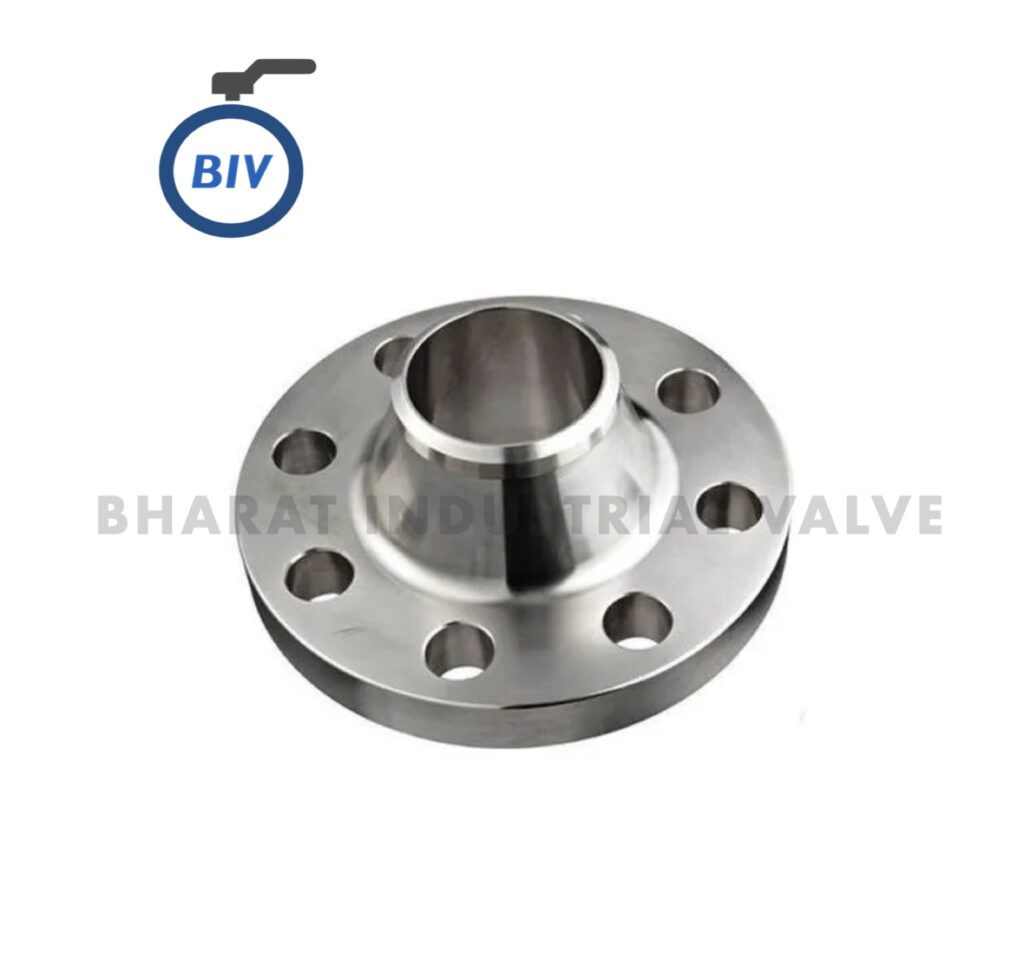

Weld neck flanges have a tapered hub designed for a butt-welded connection to the pipe. The flange’s nominal size, bore, material, pressure class and facing must match the applicable piping specification. They are used in selected pressure-piping, process and cyclic-duty systems when the design code calls for a weld neck connection.
Specifications
| Material | CS / SS 304 / SS 316 |
|---|---|
| Standard | ASME B16.5 / DIN 2629 |
| Pressure Rating | Class 150 / 300 / 600 / PN16 / PN25 |
| Size Range | 15mm – 600mm |
Applications
- High-pressure and high-temperature piping
- Critical process connections
- Applications with severe cyclic loading
Why Source From Us?
Bharat Industrial Valve supplies weld neck flanges in Chennai for industrial piping requirements. Confirm the material, standard, pressure class, size and required documentation against the quotation before ordering.
Project Enquiry & Related Flanges
For a weld neck flange quotation, send the material, standard, pressure class, size, quantity and delivery location. For moderate-pressure or closure duties, compare our Slip On Flange, Blind Flange and Spectacle Flange pages. Request a project quote.
Weld Neck Flange Dimensions and Pipe Bore Matching
A welding neck flange must be selected as part of the complete piping joint, not by nominal diameter alone. Match the applicable dimensional standard (such as ASME B16.5 where specified), flange size, pressure class, material grade and sealing-face type. Confirm that the hub bore and welding-end preparation match the pipe outside diameter, wall thickness or schedule, and the approved welding procedure. An incorrect flange bore, facing or class can prevent a suitable connection even when the nominal size appears to match.
Material, Pressure Class and Facing Selection
Common project enquiries specify carbon steel (CS), SS 304 or SS 316, subject to the application and exact grade. Pressure-temperature ratings depend on the chosen standard, material group and class; a Class 150, 300 or 600 label alone does not establish suitability for all temperatures. Confirm raised-face, flat-face or ring-type-joint facing as applicable, together with gasket, bolting and mating-flange requirements. DIN/PN and ASME class terminology should be matched to the required drawing rather than assumed interchangeable.
Weld Neck Flange RFQ Checklist
- Applicable dimensional and material standard, material grade and required product marking
- Nominal size (DN/NPS), pipe outside diameter and wall thickness or schedule for bore matching
- Pressure class or PN rating, design pressure and design temperature
- Facing type, flange thickness or relevant drawing, and welding-end or bevel requirements
- Quantity, delivery city, any specified test certificates or inspection documentation
Bharat Industrial Valve accepts Chennai weld neck flange supplier enquiries against project drawings and BOQs; availability, documentation and final material conformity are verified against the quoted supply. Compare Slip On Flanges, Blind Flanges and the Valve Accessories range for related fittings. Send a weld neck flange enquiry for quotation.
